Modular Build specialises in providing modular and portable buildings, cabins and units. We have a wide experience in constructing modular buildings for the catering industry, in accordance with European Union standards. With great, modern designs and meticulous attention to detail, our steel based modular buildings are energy efficient, built with the highest quality materials and comply with local building regulations. All of our designs can be built to a personalised specification, tailored and adapted to suit our client’s needs.

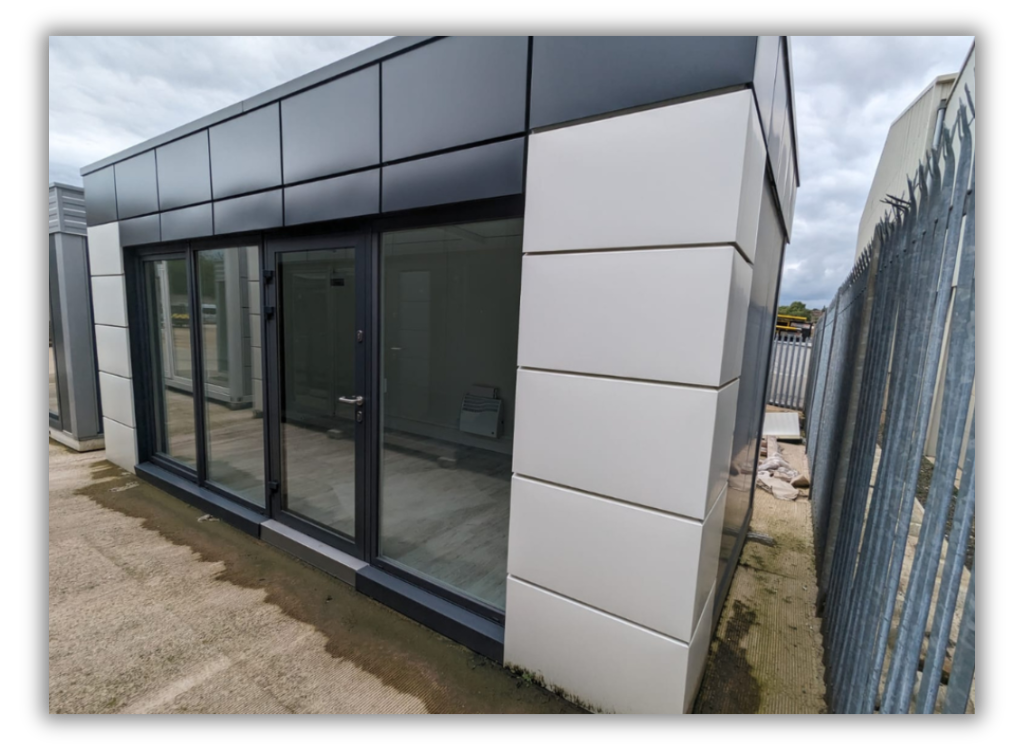

Portable office Building based on a steel frame and sandwich panels comprising of two steel sheets facings and a 150mm insulation core PWS-S / PWS-D (Styrofoam core Uc value (W/m²·K) = 0,25)
The price includes:

OUTLINE TECHNICAL SPECIFICATION:

WALLS: UC VALUE (W/M².K) = 0.25

Steel structure
Sandwich panels comprise of two steel sheet facings and a 150mm insulation core PWS-S/PWS (W/M²K) = 0.25
Panel facings are made of a galvanised steel sheet coated with polyester paint: thickness 0.5mm

WINDOWS & DOORS:

Aluminium Doors (24mm double glazing) 1.10 m x 2.10 m

1 piece

Installation: 4/16/4
Folio: PVB
Thickness 76
Gas: Argon
Sound Reduction: 36db

PVC Window Fixed (24mm double glazing)

2 pieces

Installation: 4/16/4
Folio: PVB
Thickness 76
Gas: Argon
Sound Reduction: 36db

PVC Window Openable (24mm double glazing)

1 piece

Installation: 4/16/4
Folio: PVB
Thickness 76
Gas: Argon
Sound Reduction: 36db

ROOF: UC VALUE (W/M².K) = 0.25

Steel structure
Sandwich panels comprise of two steel sheet facings and a 150mm insulation core PWS-S/PWS (W/M²K) = 0.25
Panel facings are made of a galvanised steel sheet coated with polyester paint: thickness 0.5mm
Plasticised PVC roofing membrane with polyester mesh reinforcement Flagon SR 120:
Thickness: 2mm
Weight: 5kg/m²
Tensile Strength: >1100N/50mm
Elongation To Break: >15%

INSULATED SELF-SUPPORTING FLOOR: UC VALUE (W/M².K) = 0.22

Steel structure
22MM OSB Board
70mm Insulation
Variostep Classic Ac4 laminate flooring

Plank Size: 1,285 x 192 x 8 mm
Guaranteed for 20 years
Class 23
For heavy usage in domestic areas
Class 32 / AC 4
For normal usage in commercial areas
4 sided V-groove
Eco-Friendly
Aquastop 8 mm
B.C. Anti-Bacterial Coating
1clic2go
Easy to lay with: 1clic2go
VOC A+

Price does not include:

Foundations, concrete blocks, etc.
Hi-ab crane for unloading
Alarm system’s
Access ramps, steps to the building
Internal decorative elements (mirrors, shelves, etc.)
Manifestation on the glass

Expected delivery time from the moment of order 2 weeks
